      UR110/UR 220 USB RFID reader setup

      Setup of the UR110/UR220 USB RFID Reader is

      1. Go to Setup POS Terminals

      2. Modify the required POS Terminals

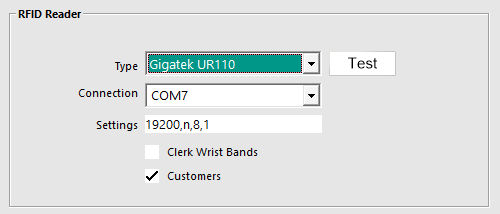

      3. Select the Customer Readers tab

      4. Select Type as 'Gigatek UR110'

      5. COM port - check device manager, if you can't find it, get them to unplug the reader and see which device disappears.

      6. Set Settings to 19200,n,8,1 (Ensure the Baud is changed as default is 9600)

      7. Ensure baud is set to 19200 in the assigned COM port in Device Manager.
