Oolio Pay - Verifone V660p Integration (Wifi)

Eftpos Terminal Setup

1. Go to Settings > Network and Internet > Internet
2. Select the local Wifi Network, enter password & click the tick to apply
3. It is recommended that a static IP is assigned so that the device always utilises the same IP Address
4. Click on the Network once connected it will display Connected along with the connectivity strength

5. Click on the pencil in the top right

6. Click Advanced Options

7. Change the IP Settings from DHCP to be Static

8. Assign IP Address, Gateway, DNS Settings

9. You can check the IP details in the Network Details screen


Idealpos Setup

1. Check the system is Licensed for Oolio Pay AU/NZ

2. Go to Setup > POS Terminals

3.  Select the EFTPOS Settings TAB

4. Set Eftpos Type to be Oolio Pay AUS/NZ Verifone

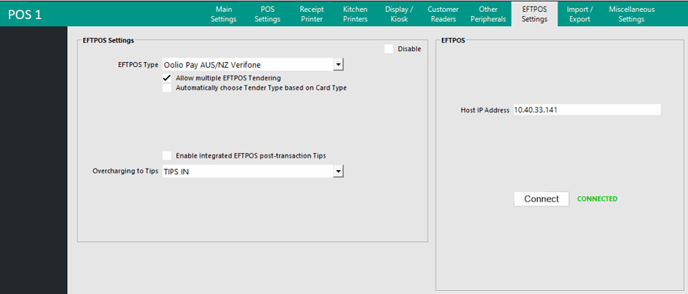

5. Set the Host IP Address {IP Address of the Eftpos Terminal} & click Connect, once the link is established it should display CONNECTED in green.

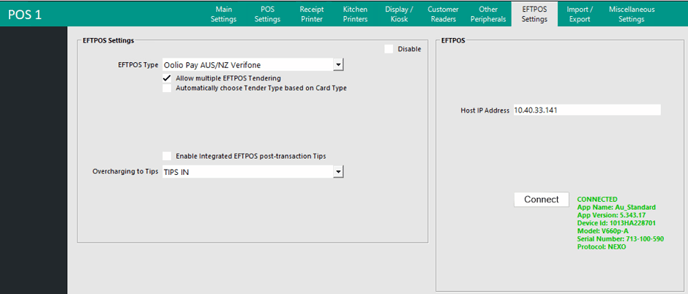

6. If you go back in to the POS Terminal it will display additional details of the connected pinpad (Example below)
