Document to show settings in Idealpos v8 / v9 for i15 J6412 MCR and RFID Readers. Also pictures for hardware installation and cable connections.
i15 J6412 MCR and RFID
Installation and configuration
No 12v option ( not required ) to be turned on in BIOS for COM3 for RFID readers on i15 J6412 terminals.
12v is still required to be turned on in BIOS for COM3 for RFID readers on i15 J1900 v1/v2 or below terminals.
Reader Settings MCR : COM4 , 9600,e,8,1
Type : Idealpos V9 idealpos IT/PT/KS
Idealpos v8 idealpos i15
Reader Settings RFID : COM3 , 9600,n,8,1
Type : Gigatek GP20 or Gigatek UR110 ToBeConfirmed

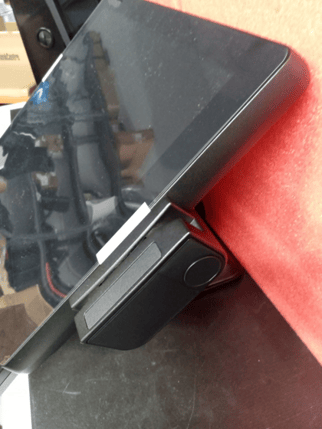

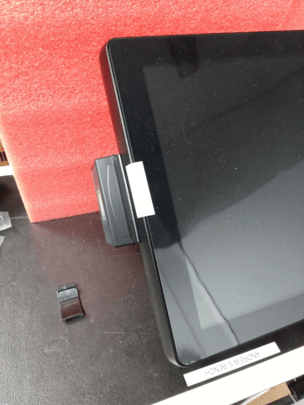

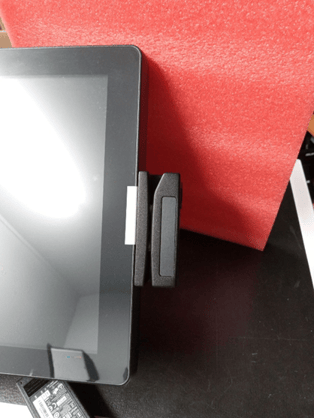

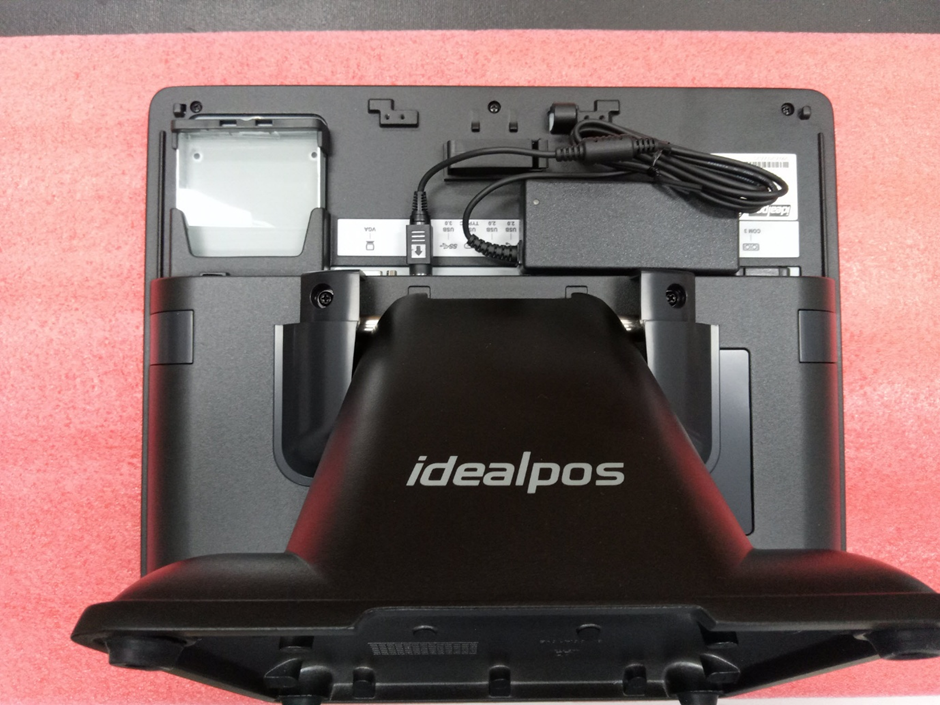

Hardware Installation :

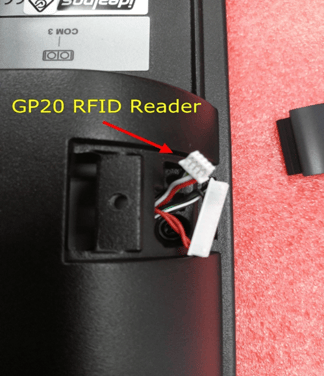

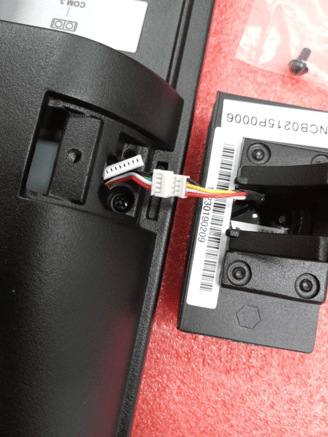

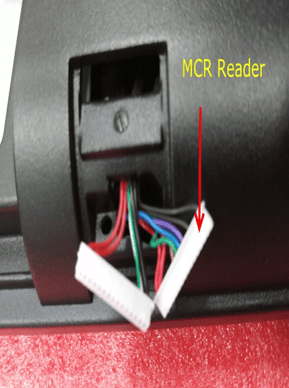

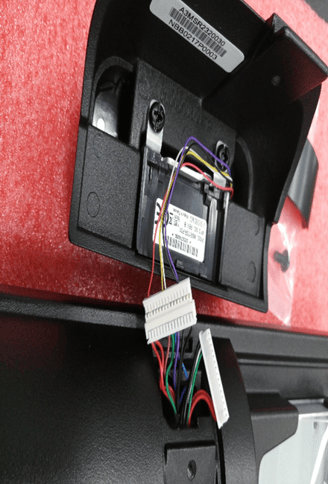

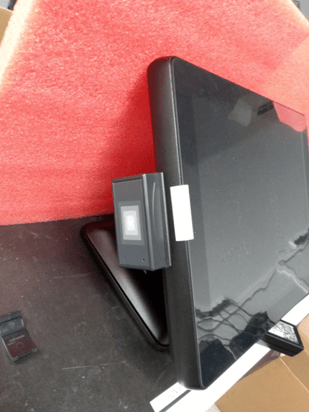

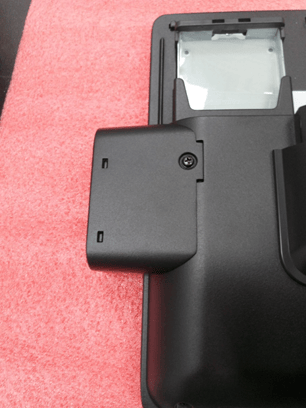

RFID on left side only ( small connector ) , MCR on right side only ( connector with center wires ).
