      i15 J6412 M.2 flash drive replacement

      i15 J6412 M.2 flash drive replacement

      i15 J6412 M.2 flash drive replacement

      Place terminal face down on a soft surface, foam pad, towel and remove the 2 screws that secure the stand cover.



      Remove M.2 cover



      Remove M.2 screw

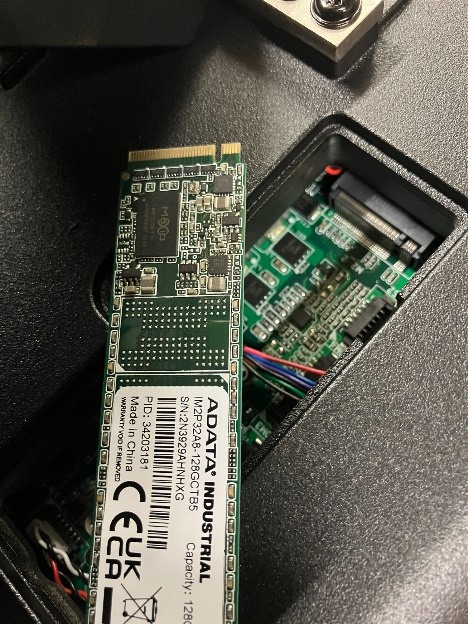

      Flash card should angle up on its own, carefully remove the flash card from the terminal.

      Installation is the reverse, noting the angle and connector orientation.

      ** Note the replacement card may be a different manufacturer so press F9 during the

      first power on to select the flash card as the boot device. **
